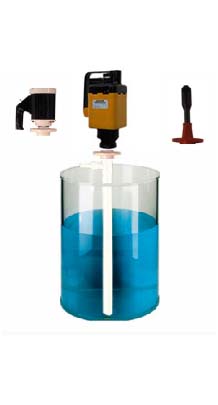

Teflon Barrel Pump

Teflon Barrel Pump

Material Of Construction :
All wetted parts like pumping chamber, pump base, discharge tee, nozzle, wing nut, impeller are made of TEFLON, Outer & Inner pipes & Guide sleeve are made of Teflon, Shaft is made of Hastalloy-B2. Impeller is made of ETFE (Moulding grade of Teflon)

Drive : Pumps Available with Pneumatic / Flameproof / Non Flameproof Motor & also Available with Regulating System.

Application :
Concentrated Acids, Aggressive Alkalies, Flammable Liquids, Thionyl Chlorides, Water Treatment Chemicals & Other.

Operating Data :
Capacity Upto 1 10 LPM at Open Discharge. Head Upto 21 mtrs

The ideal solution for container emptying

* These Barrel can be used as container pump as vertical, submersible centrifugal pump, which is driven by a standard single-phase motor.
* These pumps have been designed in such a way that it can be fitted into the container easily.
* The drive output has been chosen in such a way that liquids up to a density of 1.8 kg/dm3 can be pumped.
* The materials can be used in almost all application.

THE PUMP IS FOR INTERMITTENT USE ONLY

ACCESSORIES

Strainer : To Prevent Foreign Particles inside Pump

Wall Bracket : Wall bracket Usd when pump is not in Use, to Storing the pump in vertical position, that will Increased the pump life and protect the pump From damage and deformation.
